Nova P600c
600W tunable color soft panel light
- 600W RGBWW 2x1 LED Soft Full-Color Light Panel
- 4-Light Engine Pixel-Mapping Control
- Fully Tunable: Wide 2,000K 10,000K CCT Range with Full Green-Magenta Adjustment
- Built for Professionals: Sidus Link, LumenRadio CRMX, 5-Pin DMX512
- Compatible with Nova P600c Accessory Ecosystem
The Next Wave
The Nova P600c represents the next generation of the Nova family of LED panels, building on the foundation of high color fidelity, 2,000K~10,000K CCT, and soft light quality while also featuring best-in-class output, and a new suite of professional-level controls.

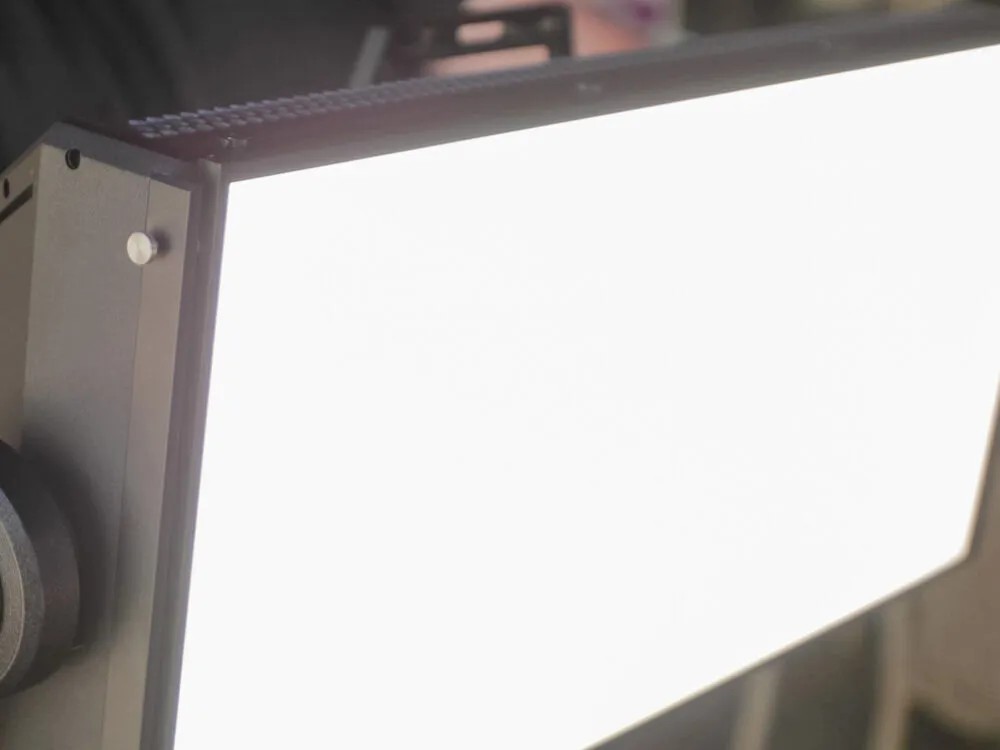

Unmatched Brightness
With its 600W RGBWW chipset, the Nova P600c is the brightest 2x1 Soft Panel on the market, boasting an output of 2,298 lux at 3 meters.

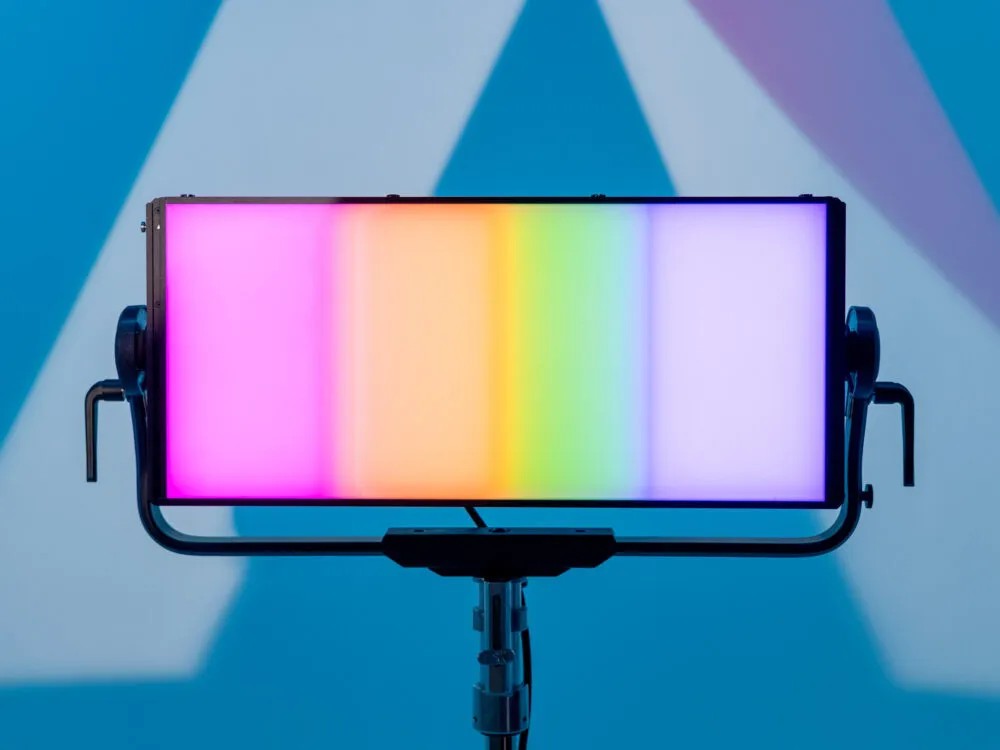

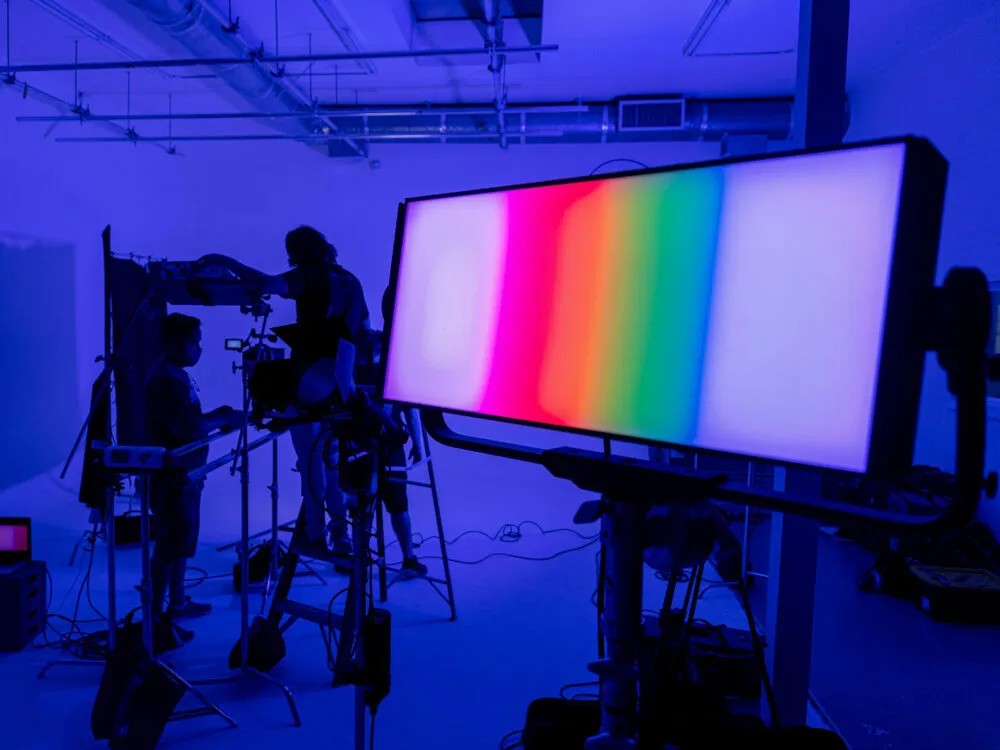

4 Light Engines
The Nova P600c is the first Aputure fixture to feature multiple light engines and pixel control. Its multiple light engines can be activated when using the built-in lighting effects, or can be controlled independently via DMX.
Curved Dual-Lock Yoke
The yoke on the Nova P600c has also undergone an upgrade, now featuring a curved design, similar to the LS 600d Pro and 600x Pro, allowing it to maintain tilt-control when using modifiers, which is difficult for traditionally designed straight yoke LED panels.

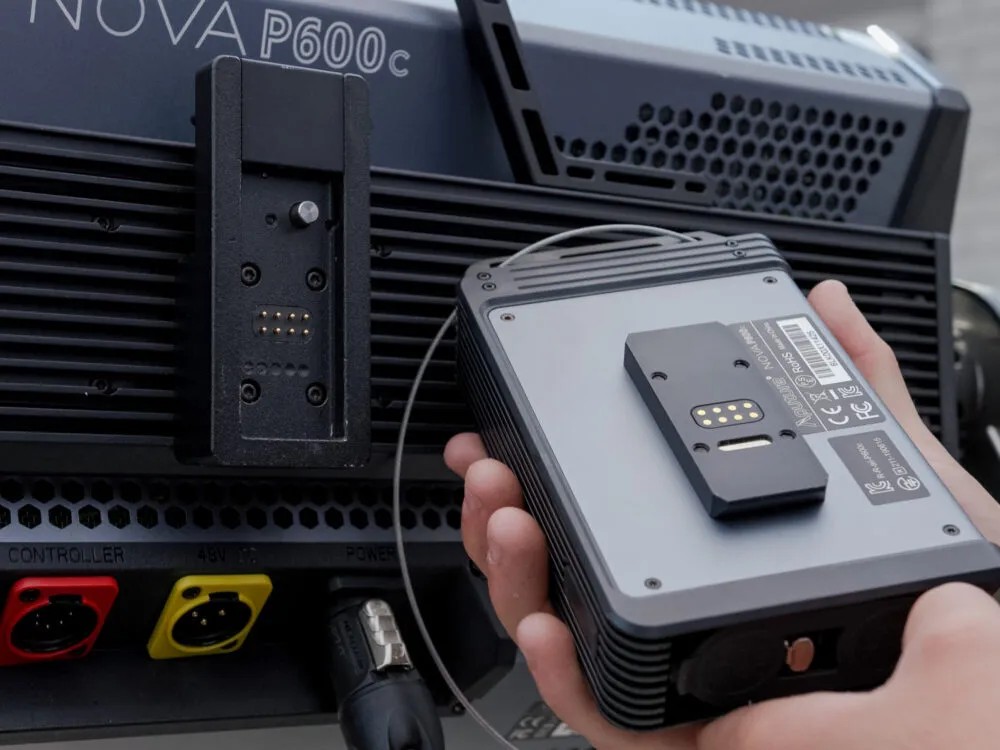

Cable-Less Control Box
In addition to its 3 meter extension cable, the P600c's control box has been updated with contact pins integrated into the Lightning Clamp for completely cable-less operation.

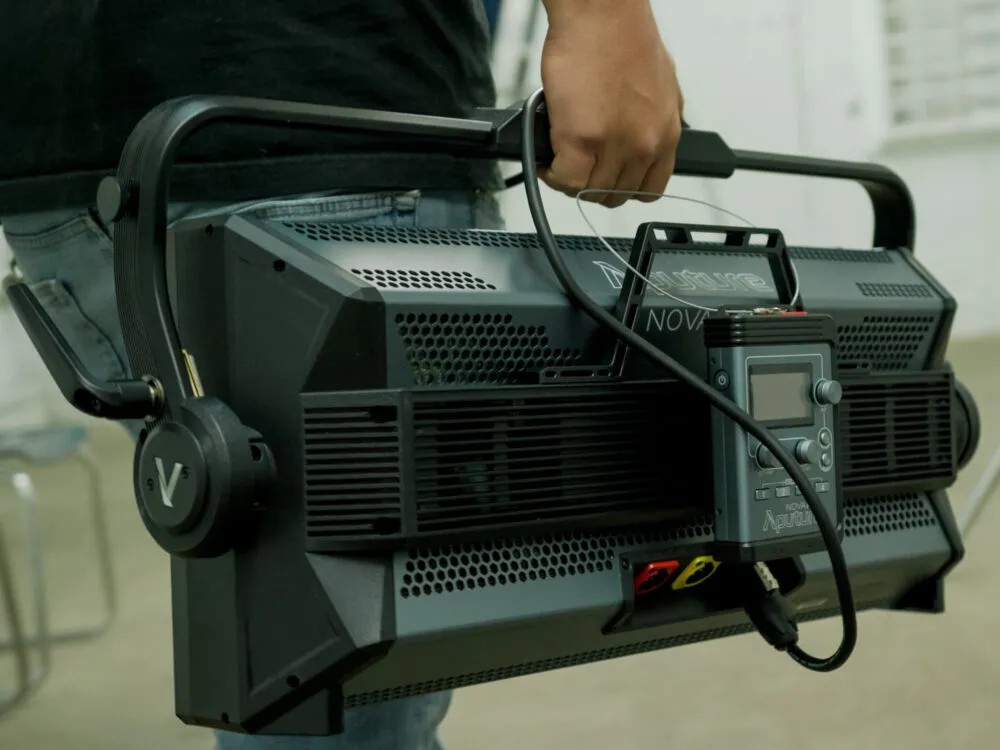

Integrated Power Solutions
The Nova P600c features a built-in power supply, minimizing weight and setup time. It also features a 48V/15A 3-Pin XLR DC input for users who want to operate the fixture via quiet battery power solutions instead of noisy generators.

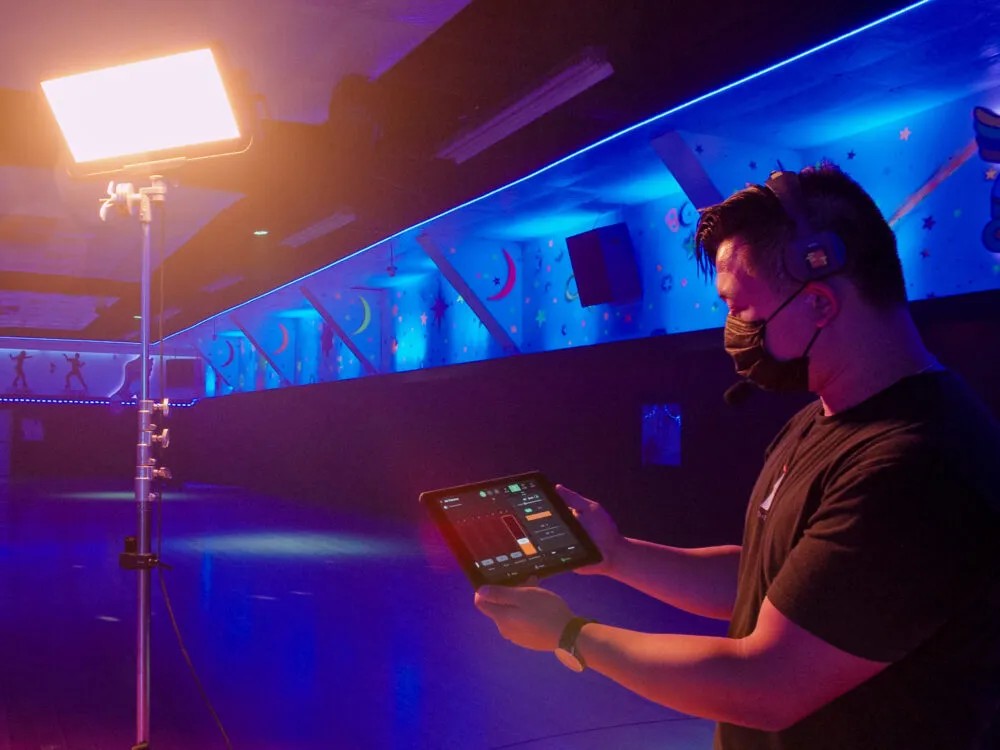

Sidus Link
As a member of the Aputure family, the Nova has integrated Sidus Mesh technology, allowing it to wirelessly network with other Sidus-enabled lights, all of which can be controlled through the Sidus Link mobile app.

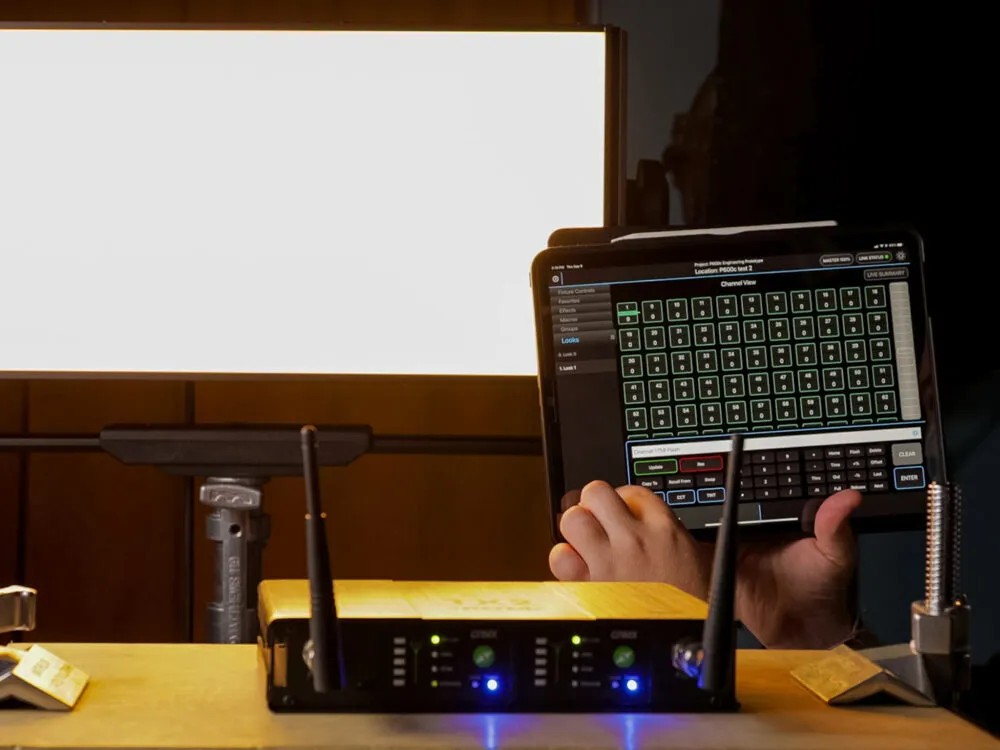

Lumen Radio CRMX
Professional lights deserve professional-level connectivity. In addition to 5-Pin DMX512, lighting technicians can also control the Nova P600c wirelessly using its built-in Lumenradio CRMX.

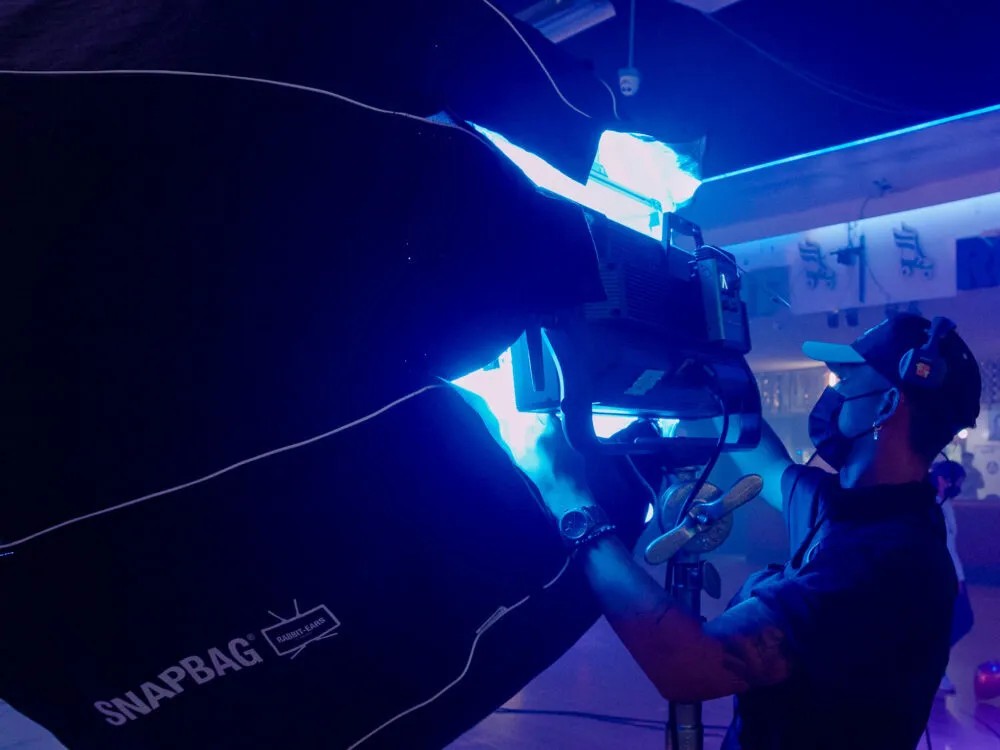

Professional Modifiers
The Nova P600c can modified using a variety of tools, such as intensifiers, light control grids, and soft boxes, as well as third-party modifiers from brands including DoPchoice & Chimera.

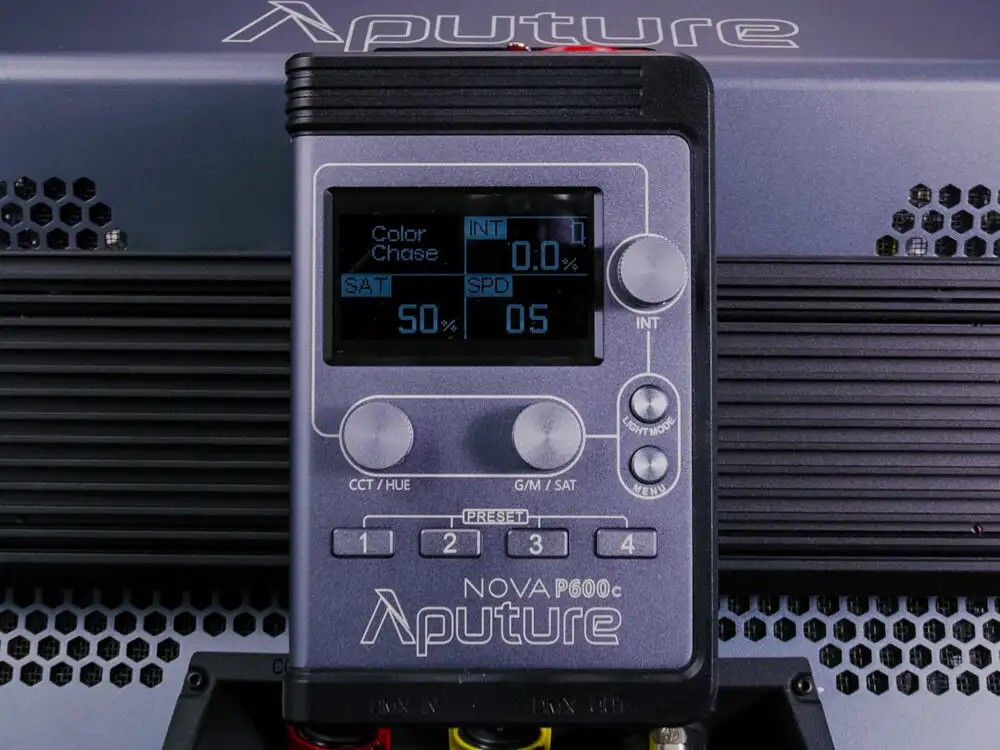

19 Lighting FX
Building upon the Nova P300c's 15 built-in lighting FX, the Nova P600c's 4 light engines adds four more lighting effects including: Color Fade, Color Cycle, Color Gradient, & One Color Chase.
Photometrics
CCT / Distance | 1m | 3m | 5m |
---|---|---|---|
2700K | 14,586 lux | 1,850 lux | 725 lux |
1,363 fc | 173 fc | 68 fc | |
3200K | 15,240 lux | 1,936 lux | 746 lux |
1,424 fc | 181 fc | 70 fc | |
4300K | 15,533 lux | 1,945 lux | 758 lux |
1,452 fc | 182 fc | 71 fc | |
5600K | 17,520 lux | 2,167 lux | 847 lux |
1,637 fc | 202 fc | 79 fc | |
6500K | 18,346 lux | 2,298 lux | 867 lux |
1,714 fc | 215 fc | 81 fc |
Product Specifications
Specifications
- CCT
- 2000K – 10000K
- G/M Adjustable
- ±1.00G
- Color Modes
- HSI, RGB, XY, Gels
- CRI
- ≥ 95
- TLCI
- ≥ 95
- CQS
- ≥ 95
- SSI (Tungsten)
- 84
- SSI (D56)
- 74
- TM-30 RF (Average)
- 95
- Beam Angle (Half-Peak Angle)
- 120°
- Max Power Output
- 600W
- Max Power Consumption
- 720W
- Operating Current (AC)
- 8A
- Operating Current (DC)
- 15A
- Operating Voltage (AC)
- 100V~240V
- Operating Voltage (DC)
- 48V DC
- DC Input
- 48V 15A
- Cable Type (AC Power)
- Neutrik® powerCON TRUE1 TOP AC Power Cable (6m)
- Cable Type (Head Cable)
- 5-Pin XLR Head Cable (3m)
- Operating Temperature
- -20°C ~ 45°C / -4°F ~ 113°F
- Connectivity
- Bluetooth 5.0 (Sidus Mesh), LumenRadio CRMX
- Firmware Upgradeable
- USB (FAT16/FAT32), Sidus Link
- Display Type
- OLED
- Cooling Method
- Active Cooling
- Mounting
- Junior Pin
- Accessory Mount
- Nova P600c Accessory Slot
- Estimated LED Lifetime (L70)
- 50,000 Hours
Dimensions
- Lamp Head w/ Yoke
- 80.20*48.15*17.96cm / 31.57*18.95*7.07in
- Lamp Head w/o Yoke
- 63.97*28.49*16.58cm/21.18*11.21*6.53in
- Panel Surface
- 63.97*28.49cm/21.18*11.21in
- Control Box
- 15.75*9.66*4.58cm / 6.20*3.80*1.80in
- Lightning Clamp
- 10.35*8.74*12.5cm/4.07*3.44*4.92in
- Carrying Case
- 93.75*30.65*64.10cm/36.91*12.06*25.23in
Weight
- Lamp Head
- 13.74kg / 30.29lbs
- Control Box
- 0.43kg / 0.947lbs
- Case (Empty)
- 13.7kg / 30.2lbs
- Total Weight
- 27.87kg / 61.44lbs
