Aputure
NOVA 9º 2x1

650W tunable white hyper narrow beam panel light

SKU: AP0400044PUPC: 00850065294056
$3,690

Replicate intense beams of sunlight with this panel light featuring breakthrough spectral quality.

Long Throw, Hard Shadows

The NOVA 9° 2x1 is specially tuned to throw intense, directional, tunable white light over great distances with minimal angle spread. NOVA 9° 2x1 outputs a narrower beam than any other panel light.

Create strong sunbeam effects on any subject, with pleasing directional shadow quality.

The Best Color of Any Narrow Beam Panel

The advanced BLAIR light engine in the NOVA 9° 2x1 outputs the highest quality tunable white light of any narrow beam panel light.

Blue/Lime/Amber/Indigo/Red emitters combine multiple hues of light for extreme white light quality. The Indigo emitters in the BLAIR engine enhance the colors of naturally fluorescing materials, just like sunlight, and the Extended Red emitters enrich skin tones and extend the CCT range to 1,800-20,000K.

Sunbeams, Anywhere

Thanks to the shallow footprint, the NOVA 9° 2x1 is perfect for use with reflectors, through windows, or wherever beams of sunlight are needed.

At 5 meters, the NOVA 9° 2x1 is twice as bright as a 5,000W tungsten fresnel at full spot (28,090 lux vs 14,920 lux).

1

We’ll send you an email when this item is in stock.

NOVA 2x1 3-Light Yoke
NOVA 2x1 3-Light Yoke

Rigid bracket for connecting three NOVA II 2x1 fixtures

$990
Dual Quick Release to Truss Clamp Adapter
Dual Quick Release to Truss Clamp Adapter

Low profile truss mount for NOVA II 2x1, NOVA II 1x1, and NOVA 9° 2x1

$99
NOVA 9º 2x1 3-Light Kit
NOVA 9º 2x1 3-Light Kit

1,950W tunable white hyper narrow beam 3-panel array

$11,590
NOVA 2x1 Rolling Hard Case
NOVA 2x1 Rolling Hard Case

Protective rolling case for NOVA II 2x1 and NOVA 9° 2x1

$329
1 more
RCAC3F-X AC Power Cable (6m) (20A Max)
RCAC3F-X AC Power Cable (6m) (20A Max)

6 meter power cable for NOVA II and NOVA 9°

$89
NOVA 2x1 Softbox
NOVA 2x1 Softbox

Fast deploy softbox for NOVA II 2x1 and NOVA 9° 2x1

$180
NOVA 2x1 Dome Diffuser (Light Frost)
NOVA 2x1 Dome Diffuser (Light Frost)

Low profile omnidirectional dome modifier for NOVA II 2x1 and NOVA 9° 2x1

$199
NOVA 2x1 Barn Doors
NOVA 2x1 Barn Doors

Barn doors for NOVA II 2x1 and NOVA 9° 2x1

$80 $180
5 more
Long Throw, Hard Shadows

Long Throw, Hard Shadows

The NOVA 9° 2x1 is specially tuned to throw intense, directional, tunable white light over great distances with minimal angle spread. NOVA 9° 2x1 outputs a narrower beam than any other panel light.

Create strong sunbeam effects on any subject, with pleasing directional shadow quality.

The Best Color of Any Narrow Beam Panel

The Best Color of Any Narrow Beam Panel

The advanced BLAIR light engine in the NOVA 9° 2x1 outputs the highest quality tunable white light of any narrow beam panel light.

Blue/Lime/Amber/Indigo/Red/Cyan/Green emitters combine multiple hues of light for extreme white light quality. The Indigo emitters in the BLAIR engine enhance the colors of naturally fluorescing materials, just like sunlight, and the Extended Red emitters enrich skin tones and extend the CCT range to 1,800-20,000K.

Sunbeams, Anywhere

Sunbeams, Anywhere

Thanks to the shallow footprint, the NOVA 9° 2x1 is perfect for use with reflectors, through windows, or wherever beams of sunlight are needed.

At 5 meters, the NOVA 9° 2x1 is twice as bright as a 5,000W tungsten fresnel at full spot (28,090 lux vs 14,920 lux).

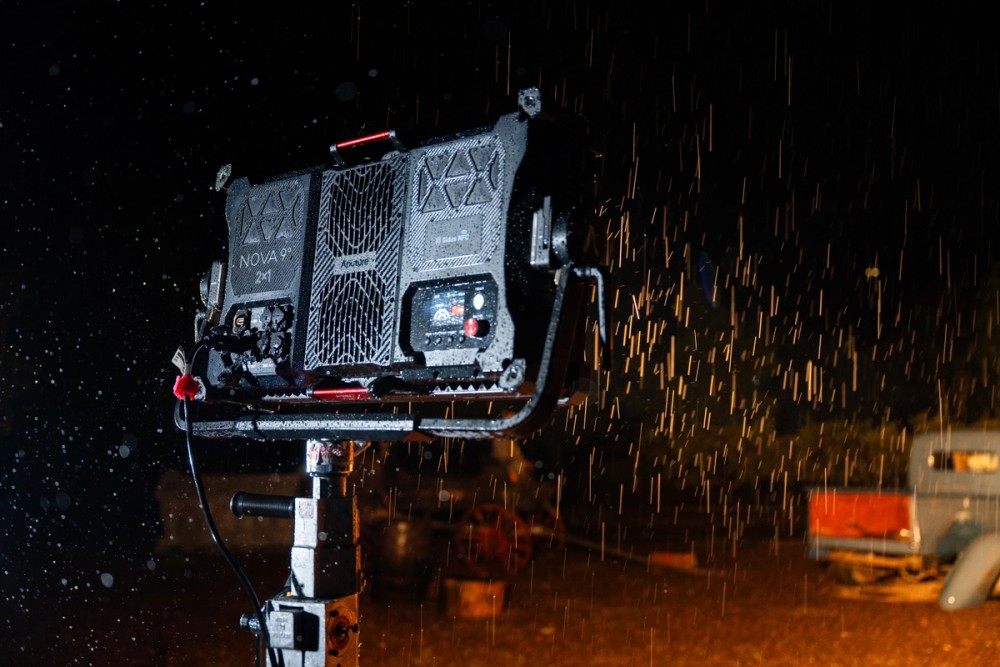

Weatherproof, Quiet, Lightweight: Pick All Three

Weatherproof, Quiet, Lightweight: Pick All Three

The advanced structural design of the NOVA 9° 2x1 allows it to achieve three goals normally at odds: low noise, low weight, and IP65 weather protection. The NOVA 9° 2x1 panel is IP65 weather protected, has fan noise below 40dB in high speed mode, and weighs less than 20kg including the yoke.

NOVA 9º 2x1 Photometrics

CCTDis.No ModifierFlat DiffuserDome Diffuser (Heavy Frost)Dome Diffuser (Light Frost)
1,800K5m19,590 lux 1,819 fc615 lux 57 fc1,474 lux 137 fc1,700 lux 158 fc
1,800K10m5,030 lux 467 fc---
1,800K20m1,329 lux 123 fc---
2,500K5m25,410 lux 2,365 fc794 lux 74 fc1,993 lux 185 fc2,283 lux 212 fc
2,500K10m7,090 lux 659 fc---
2,500K20m1,881 lux 175 fc---
3,200K5m28,090 lux 2,611 fc879 lux 82 fc2,181 lux 203 fc2,489 lux 231 fc
3,200K10m7,660 lux 712 fc---
3,200K20m2,040 lux 190 fc---
4,300K5m29,980 lux 2,786 fc940 lux 87 fc2,347 lux 218 fc2,675 lux 249 fc
4,300K10m8,340 lux 775 fc---
4,300K20m2,229 lux 207 fc---
5,600K5m29,730 lux 2,765 fc935 lux 87 fc2,345 lux 218 fc2,660 lux 247 fc
5,600K10m8,320 lux 773 fc---
5,600K20m2,229 lux 207 fc---
6,500K5m29,270 lux 2,719 fc924 lux 86 fc2,318 lux 215 fc2,620 lux 243 fc
6,500K10m8,220 lux 764 fc---
6,500K20m2,203 lux 205 fc---
10,000K5m27,150 lux 2,524 fc859 lux 80 fc2,152 lux 200 fc2,432 lux 226 fc
10,000K10m7,660 lux 712 fc---
10,000K20m2,064 lux 192 fc---
20,000K5m24,210 lux 2,249 fc769 lux 71 fc1,941 lux 180 fc2,193 lux 204 fc
20,000K10m6,920 lux 643 fc---
20,000K20m1,863 lux 173 fc---

NOVA 9º 2x1 Specifications

Color Specifications

LED Chipset
BLAIR
CCT Range
1,800K – 20,000K
CRI
≥95
TLCI
≥95
SSI (Tungsten)
89
SSI (D56)
86
TM-30 RF (Average)
95
TM-30 RG (Average)
100

Power Specifications

Max Power Consumption
800W
Max Power Output
650W
AC Operating Voltage
100V ~ 240V / 50-60 Hz

Optical Specifications

Native Beam Angle

Included Flat Diffuser Beam Angle
80º
Pixel Count
4 pixel

Environmental Specifications

Weather Resistance Rating
IP65
Operating Temperature
-20ºC ~ 50ºC / -4ºF ~ 122ºF
Storage Temperature
-40ºC ~ 80ºC / -40ºF ~ 176ºF
Cooling Method
Active (onboard fans)
Lamp Head Fan Noise Levels @ 1m Smart Mode
Variable
Lamp Head Fan Noise Levels @ 1m High Speed Mode
40 dBa
Lamp Head Fan Noise Levels @ 1m Medium Speed Mode
35 dBa
Lamp Head Fan Noise Levels @ 1m Silent Mode
0 dBa

Control and Firmware

Control Methods
Onboard, Sidus Link, Sidus Link Pro, DMX512, CRMX, Art-Net/sACN, RDM
Control Ports
1x 5-pin DMX in, 1x 5-pin DMX out, 2x locking RJ45
Firmware Upgrade Methods
Sidus Link, Sidus Link Pro, USB-A
Wireless Range (Bluetooth & CRMX)
≤100m / ≤328.1ft

Dimensions

Lamp Head (Without Yoke)
69.1 × 38.8 ×13.6 cm
27.2 × 15.3 × 5.4 in
Lamp Head (With Yoke)
82.9 × 56.6 × 15.4 cm
32.7 × 22.3 × 6.1 in
Flat Diffuser
68.4 x 37.5 × 4.0 cm
26.9 × 14.8 × 1.6 in
Rolling Hard Case (Optional)
94.1 x 37.2 x 66.4 cm
37.1 x 14.7 x 26.2 in

Weight

Lamp Head (Without Yoke)
17.25 kg / 38.03 lbs
Removable Yoke with Junior Pin
2.40kg / 5.29lbs
Flat Diffuser
2.00kg / 4.45lbs
AC Power Cable (6m)
0.80 Kg / 1.76 lbs
Rolling Hard Case (Optional)
13.54 kg / 29.79 lbs
Downloads
Type
Resource
Release
Data Sheet
1/27/2026
