Aputure

STORM 1200x

1,200W tunable white high fidelity point source lamp with ProLock Bowens Mount

Enrich your subject with this 1,200W lamp featuring the BLAIR light engine for breakthrough color accuracy.

Next generation light

The STORM 1200x’s new BLAIR (Blue/Lime/Amber/Indigo/Red) light engine delivers higher quality white light than any previous LED system, with CRI 95+ and SSI 87. The BLAIR chipset enhances the colors of naturally fluorescing materials, resulting in an image that more accurately matches real daylight and tungsten sources.

Next generation range

The BLAIR chipset gives STORM 1200x best-in-class CCT range from 2,500K-10,000K, full +/- green adjustment, and extreme low-end dimming to just 0.1%. STORM 1200x is color-accurate and flicker-free from candlelight to daylight.

ProLock Bowens Mount

The ProLock Bowens locking mount holds modifiers and optics rigidly in place. On STORM lamps, even the heaviest modifiers stay secure and properly aligned.

Find Dealers or Rentals
Estimated Shipping Time: Late December 2024
STORM 1000c/1200x Barn Doors Adapter
STORM 1000c/1200x Barn Doors Adapter
Mount CF12 Barn Doors directly to STORM 1000c and 1200x
CF12 Fresnel
CF12 Fresnel
Compact fresnel with Bowens Mount, designed for the STORM 1000c and 1200x
STORM 1000c/1200x Skid
STORM 1000c/1200x Skid
Skid base for STORM 1000c and 1200x
STORM 1200x Cine Kit
STORM 1200x Cine Kit
STORM 1200x light kit with CF12 Fresnel, CF12 Barn Doors, and Skid base
STORM 1000c/1200x Reflector Kit
STORM 1000c/1200x Reflector Kit
Narrow and medium reflector kit for the STORM 1000c and 1200x
Compatibility Wizard
Storm 1200x

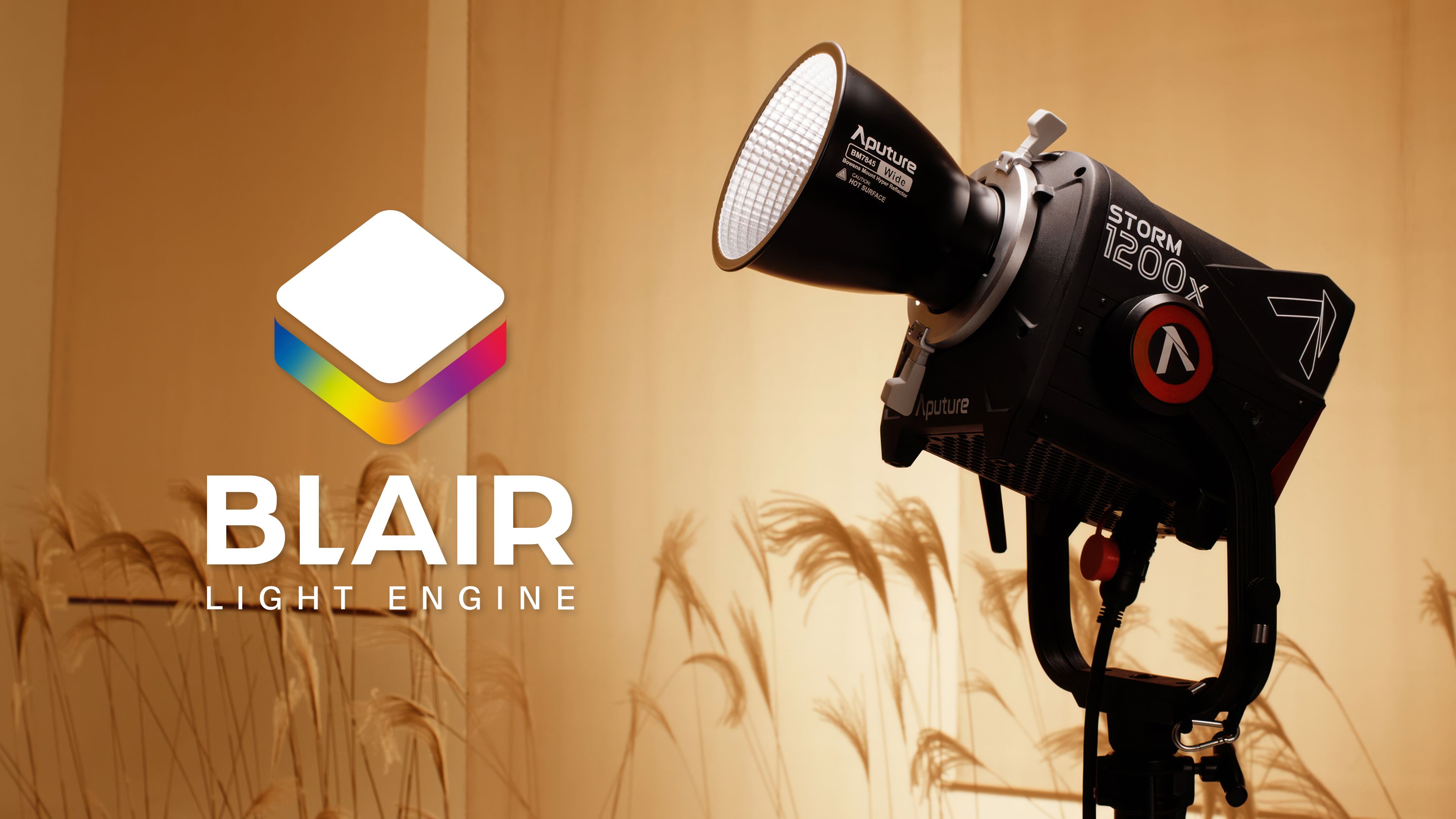

Introducing BLAIR

The STORM 1200x utilizes a new BLAIR five-color (Blue/Lime/Amber/Indigo/Red) light engine to better fill out the color spectrum while offering greater adjustability.

Storm 1200x

Experience Full Spectrum

The calibrated indigo enhances fluorescing materials, resulting in a higher quality white light that better matches natural daylight and Blackbody sources such as tungsten quartz, CRI 95+, SSI [P3200]): 87, SSI (CIE D5600): 87.

Storm 1200x

See the Difference

We compared the color response for natural daylight, a traditional bi-color LED, and the STORM 1200x together and found huge, but subtle differences in the objects that fluoresce.

Storm 1200x

Best Color Adjustability

The BLAIR light engine enables the STORM 1200x to offer a greater range of CCT than traditional bi-colors and is the first light of its kind to offer 100% +/- green control, the full ASC MITC range of adjustment.

Storm 1200x

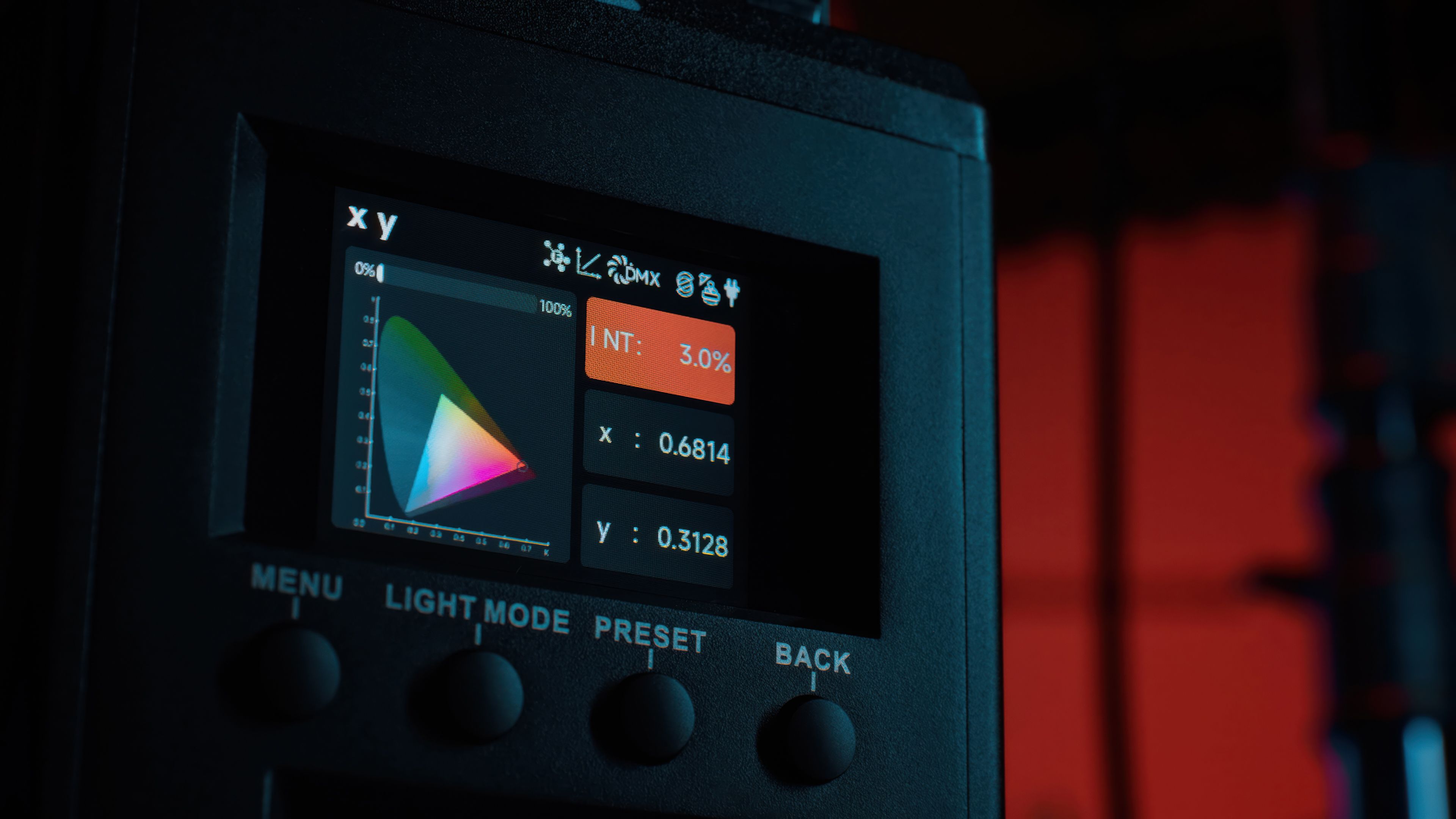

Introducing xy Control

The STORM 1200x has so much color range Aputure has even added an x,y coordinate mode for greater precision control.

Storm 1200x

Precision Low-End Dimming

Bit-depth control is increased for improved low-end dimming. This enables the STORM 1200x to use PWM dimming all the way down to 0.1% without shifts or dropoff. Color accuracy is maintained throughout the brightness range, even at extreme low brightness levels.

Storm 1200x

ProLock Locking Bowens Mount

The STORM lights feature the ProLock Locking Bowens Mount, a more secure clamping design for attaching modifiers. Bowens accessories are held rigidly in place and precision optics such as fresnels and spotlight projectors are precisely aligned with the light engine.

Storm 1200x

IP65 Weather Protection

Head-to-toe IP65 dust and weather protection means the STORM 1200x can work in extreme environments. Seals on every connector and around components allow not only the lamphead but also the control box and cabling to be used outside in the rain.

Storm 1200x

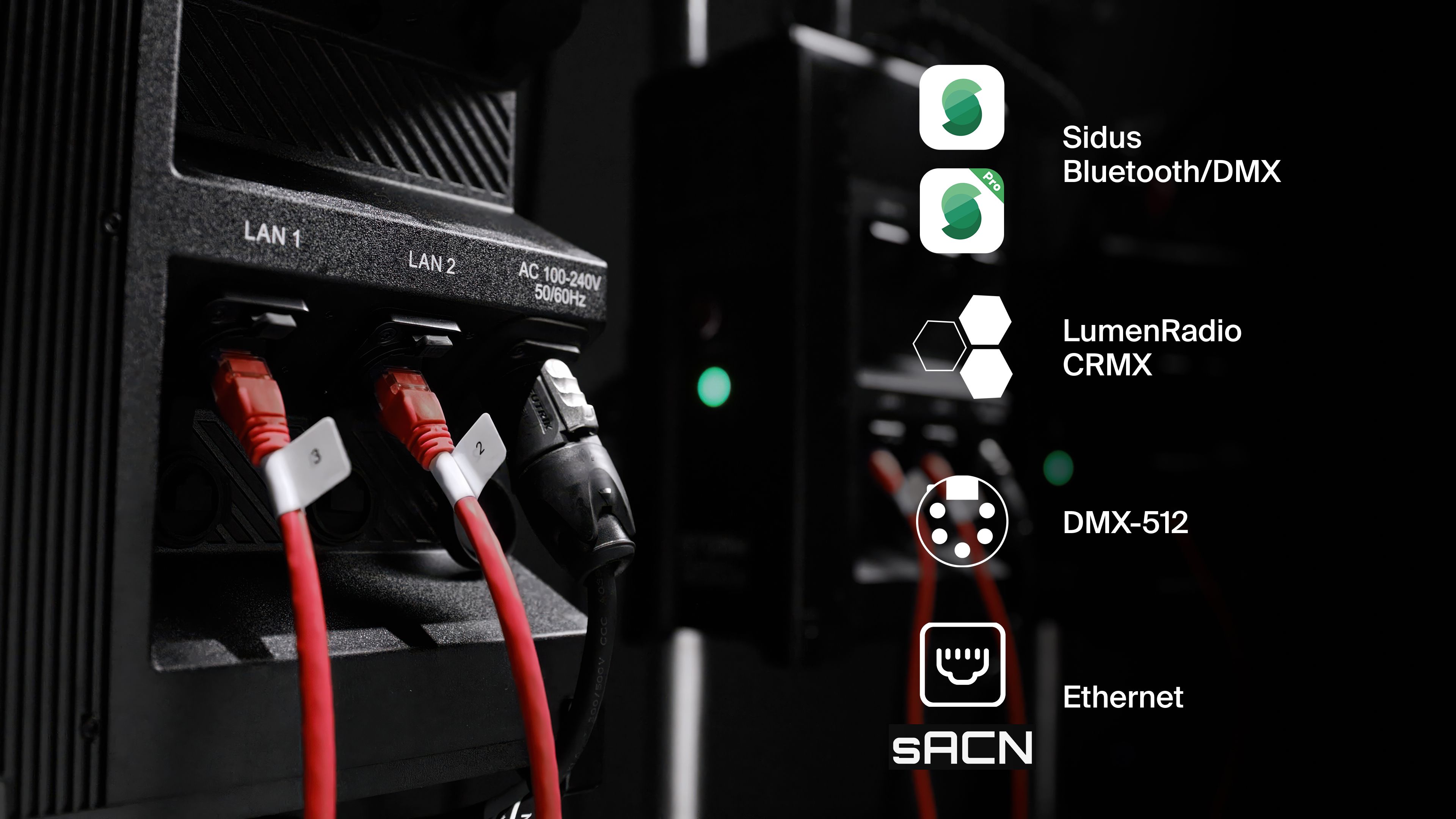

Every Control Option Out There

The STORM 1200x features all of the professional connectivity options used in modern lighting: CRMX, DMX512 in and out, sACN and Art-Net over etherCON, and Sidus Mesh.

Photometrics

CCTDis.No Reflector15° Reflector30° Reflector45° Reflector
2,500K3m6,570 lux / 611 fc74,000 lux / 6,877 fc32,200 lux / 2,993 fc15,300 lux / 1,422 fc
2,500K5m2,510 lux / 233 fc25,600 lux / 2,379 fc10,900 lux / 1,013 fc5,420 lux / 505 fc
3,200K3m8,370 lux / 778 fc94,600 lux / 8,792 fc41,100 lux / 3,820 fc19,500 lux / 1,812 fc
3,200K5m3,170 lux / 778 fc30,900 lux / 2,872 fc13,800 lux / 1,283 fc6,910 lux / 642 fc
4,300K3m8,620 lux / 801 fc97,400 lux / 9,052 fc42,400 lux / 3,941 fc20,100 lux / 1,868 fc
4,300K5m3,280 lux / 305 fc33,600 lux / 3,123 fc14,300 lux / 1,329 fc7,130 lux / 663 fc
5,600K3m8,490 lux / 789 fc96,100 lux / 8,931 fc41,800 lux / 3,885 fc22,500 lux / 2,090 fc
5,600K5m3,230 lux / 300 fc33,300 lux / 3,095 fc14,100 lux / 1,310 fc7,070 lux / 657 fc
6,500K3m8,370 lux / 778 fc94,700 lux / 8,801 fc41,200 lux / 3,829 fc19,500 lux / 1,812 fc
6,500K5m3,180 lux / 296 fc32,700 lux / 3,039 fc13,900 lux / 1,292 fc6,910 lux / 642 fc
7,500K3m8,200 lux / 762 fc92,800 lux / 8,625 fc40,400 lux / 3,755 fc19,100 lux / 1,775 fc
7,500K5m3,120 lux / 290 fc 32,000 lux / 2,974 fc 13,600 lux / 1,264 fc6,800 lux / 632 fc
10,000K 3m7,790 lux / 724 fc87,900 lux / 8,169 fc38,400 lux / 3,569 fc18,200 lux / 1,691 fc
10,000K5m2,960 lux / 275 fc30,400 lux / 2,825 fc12,900 lux / 1,199 fc6,470 lux / 601 fc

Technical Specifications

Specifications

LED Chipset
BLAIR
CCT
2,500K – 10,000K
Green-Magenta Adjustment Range
±G 100% (Full ASC MITC Range)
CRI
≥95 (3,000K)
TLCI
≥95 (3,200K)
CQS
≥94
SSI (Tungsten)
87
SSI (D56)
87
TM-30 RF (Average)
95
TM-30 RG (Average)
100
Max Power Consumption
1550W
Max Power Output
1200W
Weather Resistance Rating
IP65
Included Reflector Beam Angle
45°
Operating Voltage
100V ~ 240V / 50-60 Hz
Operating Temperature
-20°C ~ 45°C / -4°F ~ 113°F
Storage Temperature
-40°C ~ 80°C / -40°F ~ 176°F

Control Methods

Data Ports
1x 5-Pin DMX In, 1x 5-Pin DMX Out, 2x LAN
Control Methods
On-board, Sidus Link App, Sidus Link Pro App, DMX/RDM, CRMX, sACN & Art-Net
Firmware Upgradeable
Sidus Link, Sidus Link Pro, USB Drive
Wireless Range Sidus Bluetooth
≤100m / ≤262.5ft
Wireless Range CRMX (TimoTwo)
≤100m / ≤262.5ft

Lamp Head Fan Noise Levels

Smart Mode
52 dBA
High Mode
43 dBA
Medium Mode
34.4 dBA
Low Mode
31 dBA
Silent Mode
0 dBA
Max Control Box Noise Level All Modes
28.5 dBA

Dimensions

Lamp Head (Without Yoke)
33.4 x 33.6 x 25.0cm 13.2 x 13.2 x 9.8in
Lamp Head (With Yoke)
33.4 x 33.6 x 55.7cm 13.2 x 13.2 x 21.9in
Control Box
13.6 x 18.9 x 34.4cm 5.4 x 7.4 x 33.2in

Weight

Lamp Head with Yoke
9.50kg / 20.94lbs
Control Box
5.92kg / 13.05lbs
Head Cable
1.81kg / 3.99lbs
AC Power Cable
0.65kg / 1.43lbs

FAQ

Downloads

Data SheetRelease Date
STORM 1200x - Data Sheet12/09/2024
ManualRelease Date
STORM 1200x - Manual EN V1.028/10/2024
FirmwareRelease Date
STORM 1200x - Firmware Update V1.109/09/2024
DMX ChartRelease Date
STORM 1200x - DMX Specification V1.109/09/2024
Certifications
STORM 1200x - Certifications
