STORM 80c
80W tunable color compact point source lamp with Mini ProLock Bowens Mount
Portable, powerful, and colorful. Take your lighting palette anywhere with this compact 80W point source fixture featuring the BLAIR-CG light engine.
Color Confident
The STORM 80c’s BLAIR-CG light engine (Blue/Lime/Amber/Indigo/Red/Cyan/Green) delivers higher quality tunable color light than any previous LED system, covering more than 90% of the Rec2020 color gamut. With the BLAIR-CG light engine you can trust that what you see matches what the camera captures.
Next Generation Range
The BLAIR-CG light engine enables the STORM 80c to achieve a wide CCT range of 1,800K-20,000K with full +/- green adjustment.
Mini ProLock Bowens Mount
A small sized version of Aputure’s ProLock locking Bowens Mount, the Mini ProLock holds modifiers rigidly in place and optics properly aligned.
BLAIR-CG: Colors Never Before Seen on an LED
The STORM 80c’s new BLAIR-CG light engine is the best tunable color light ever produced in an LED, delivering the greatest range and highest color accuracy. It can reach 90% of Rec2020 color space, achieving saturated colors in shades otherwise unobtainable, such as accurate yellow. The calibrated indigo emitter enhances fluorescing materials, resulting in white light that better matches natural daylight and tungsten. CRI 97+, SSI [P3200]): 88, SSI (CIE D5600): 84.
1,800-20,000K CCT and Full +/- Green Adjustability
The STORM 80c offers a best-in-class CCT range, the smallest, most portable light to do so. The color flexibility also offers 100% +/- green control, the full ASC MITC range of adjustment.

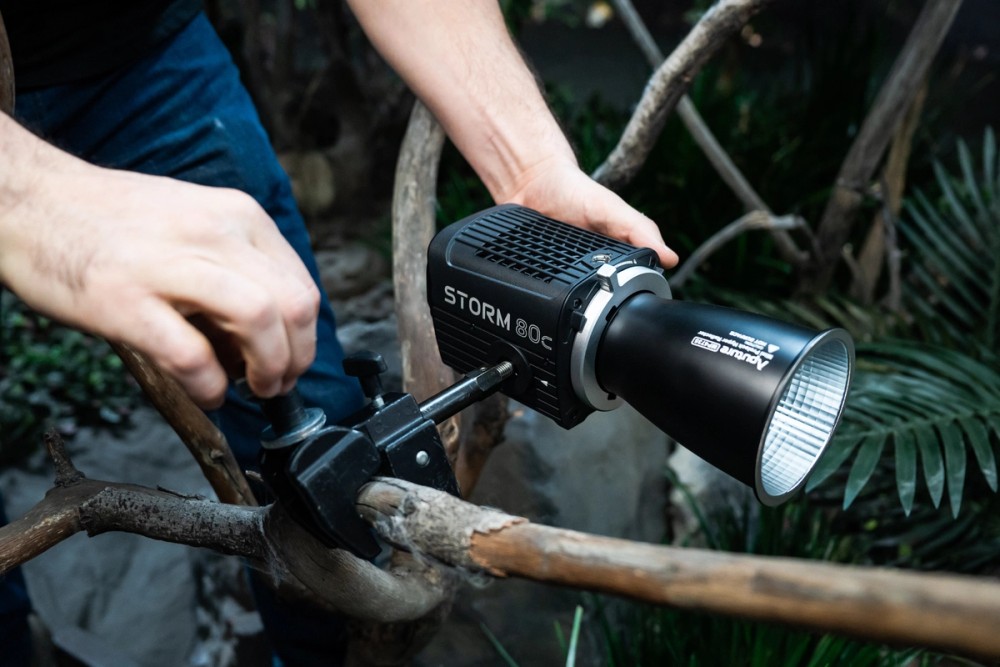

Small Size, Unlimited Possibilities
The STORM 80c features a compact design and removable yoke to stash wherever you need. Without the yoke the light measures just 6”x4”x4’ and 1kg. The yoke attachment points are 3/8in threaded sockets, so common grip mounts can be used to rig the light wherever you need. An optional handgrip with battery mount is also available.

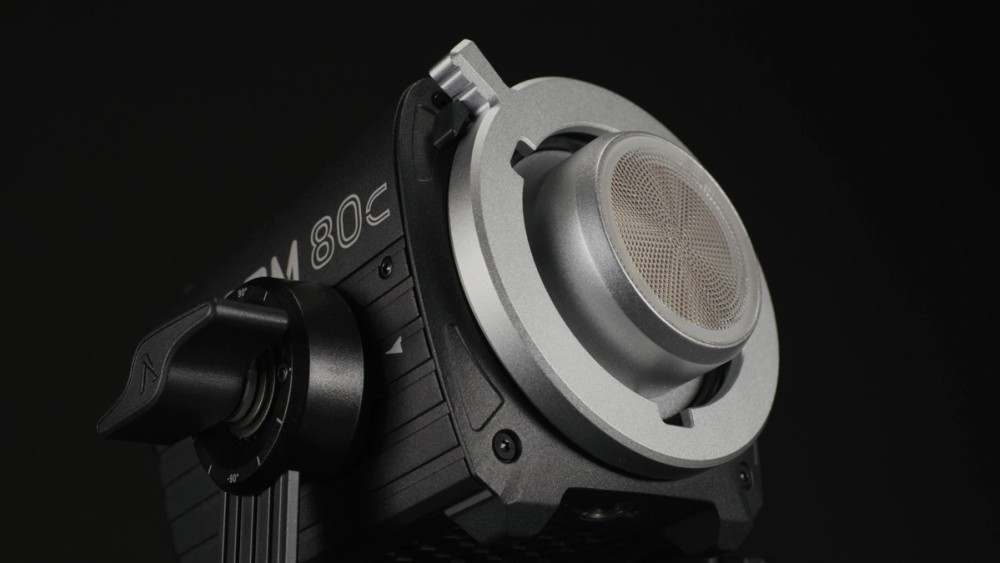

Mini ProLock Bowens Mount
The STORM 80c features a mini version of the ProLock locking Bowens Mount, a more secure clamping design for attaching modifiers. Aputure offers modifiers with the Mini ProLock and an adapter to standard Bowens Mount.
Battery Options Small and Large
The STORM 80c can be powered from AC, V-mount batteries, or USB-C. Aputure makes an optional STORM 80c Handheld Bracket, with a V-mount battery plate and D-Tap cable. The STORM 80c also features a 100W USB-C port to power directly from inexpensive and lightweight power banks.
Multiple Control Options
The STORM 80c features professional connectivity options used in modern lighting: Sidus Mesh, CRMX, and DMX.

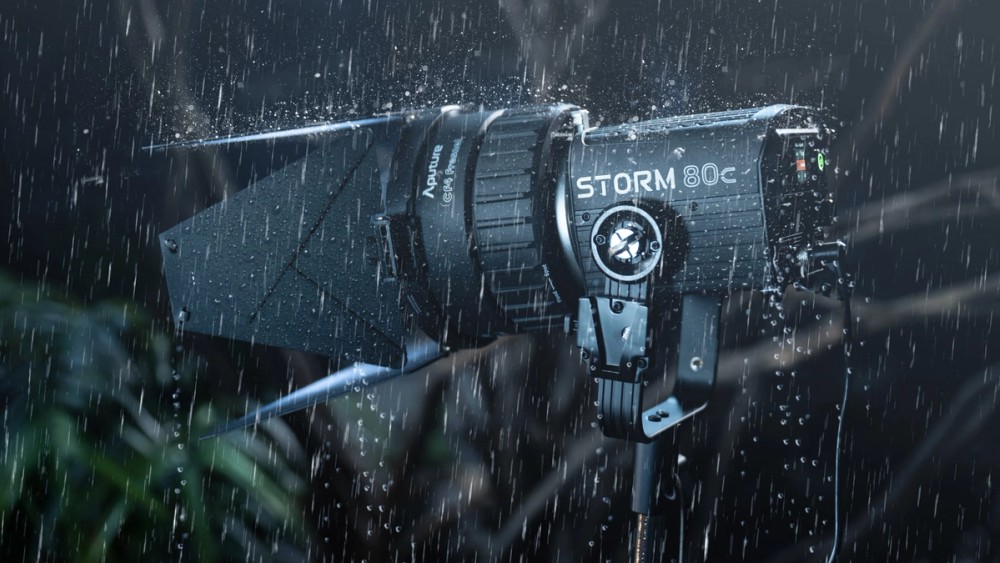

IP65 Weather Protection
Head-to-toe IP65 dust and weather protection means the STORM 80c can work in extreme environments. Seals on every connector and around components allow the light to be used outside in the rain.
STORM 80c Photometrics
CCT | Dis. | Bare COB | Hyper Reflector | Mini Lantern Diffuser |
---|---|---|---|---|
1,800K | 1m | 4,827 lux 430 fc | 13,915 lux 1,236 fc | 875 lux 79 fc |
1,800K | 3m | 524 lux 49 fc | 1,391 lux 129 fc | 98 lux 9 fc |
3,200K | 1m | 6,607 lux 614 fc | 19,443 lux 1,807 fc | 1,203 lux 112 fc |
3,200K | 3m | 729 lux 68 fc | 1,942 lux 181 fc | 137 lux 13 fc |
4,300K | 1m | 6,722 lux 625 fc | 19,432 lux 1,806 fc | 1,198 lux 111 fc |
4,300K | 3m | 728 lux 68 fc | 1,941 lux 180 fc | 136 lux 13 fc |
5,600K | 1m | 6,502 lux 604 fc | 19,850 lux 1,845 fc | 1,183 lux 110 fc |
5,600K | 3m | 721 lux 67 fc | 1,924 lux 179 fc | 135 lux 13 fc |
6,500K | 1m | 6,554 lux 609 fc | 18,783 lux 1,746 fc | 1,155 lux 107 fc |
6,500K | 3m | 704 lux 65 fc | 1,877 lux 174 fc | 132 lux 12 fc |
10,000K | 1m | 6,177 lux 574 fc | 17,621 lux 1,638 fc | 1,082 lux 101 fc |
10,000K | 3m | 660 lux 61 fc | 1,756 lux 163 fc | 124 lux 11 fc |
20,000K | 1m | 5,633 lux 524 fc | 15,391 lux 1,431 fc | 944 lux 88 fc |
20,000K | 3m | 576 lux 54 fc | 1,540 lux 143 fc | 108 lux 10 fc |
STORM 80c Specifications
Specifications
- LED Chipset
- BLAIR-CG
- CCT
- 1,800K – 20,000K
- Color Gamut Coverage
- 90%+ Rec2020
- CRI
- 97
- TLCI
- 99
- CQS (5600K)
- 96
- CQS (3200K)
- 97
- SSI (Tungsten)
- 88
- SSI (D56)
- 84
- TM-30 RF (Average)
- 96
- TM-30 RG (Average)
- 103
- Max Power Consumption
- 100W
- Max Power Output
- 80W
- Weather Resistance Rating
- IP65
- Native COB Beam Angle
- 60°
- Included Reflector Beam Angle
- 35°
- Operating Voltage
- 100V ~ 240V / 50-60 Hz
- DC Adapter Output
- 19V / 5.3A
- V-Mount Battery Operating Voltage
- 14.4V
- USB-C Power Specifications
- In 20V / 5A; Out 5V / 0.5A
- Operating Temperature
- -20°C ~ 45°C / -4°F ~ 113°F
- Storage Temperature
- -40°C ~ 80°C / -40°F ~ 176°F
- Lamp Head Fan Noise Levels (at 1m) Smart Mode
- 26.1 dBA
- Lamp Head Fan Noise Levels (at 1m) High Mode
- 26.7 dBA
- Lamp Head Fan Noise Levels (at 1m) Medium Mode
- 24.4 dBA
- Lamp Head Fan Noise Levels (at 1m) Silent Mode
- 22.3 dBA
Control Methods
- Data Ports
- USB-C, Locking 3-Pin DMX Terminal
- Control Methods
- On-board, Sidus Link App, Sidus Link Pro App, DMX, RDM, CRMX
- Firmware Upgradeable
- Sidus Link, Sidus Link Pro, USB-C
- Screen Type
- TFT
- Wireless Range Sidus Bluetooth
- ≤100m / ≤262.5ft
- Wireless Range CRMX (TimoTwo)
- ≤100m / ≤262.5ft
Dimensions
- Lamp Head (Without Yoke)
- 10.1 x 10.4 x 14.7cm
4.0 x 4.1 x 5.8in - Lamp Head (With Yoke)
- 16.7 x 22.5 x 14.7cm
6.6 x 8.9 x 5.8in
Weight
- Lamp Head (Without Yoke)
- 1.01kg / 2.23lbs
- Lamp Head (With Yoke)
- 1.35kg / 2.98lbs
- AC Power Adapter
- 405g / 0.89lb
FAQ
Downloads
DMX Chart | Release Date |
---|---|
STORM 80c & 1000c - DMX Specifications V 1.0 | 19/11/2024 |
Manual | Release Date |
---|---|
STORM 80c - Manual EN V1.0 | 19/11/2024 |
Firmware | Release Date |
---|---|
STORM 80c - Firmware Update V1.5 | 03/12/2024 |
